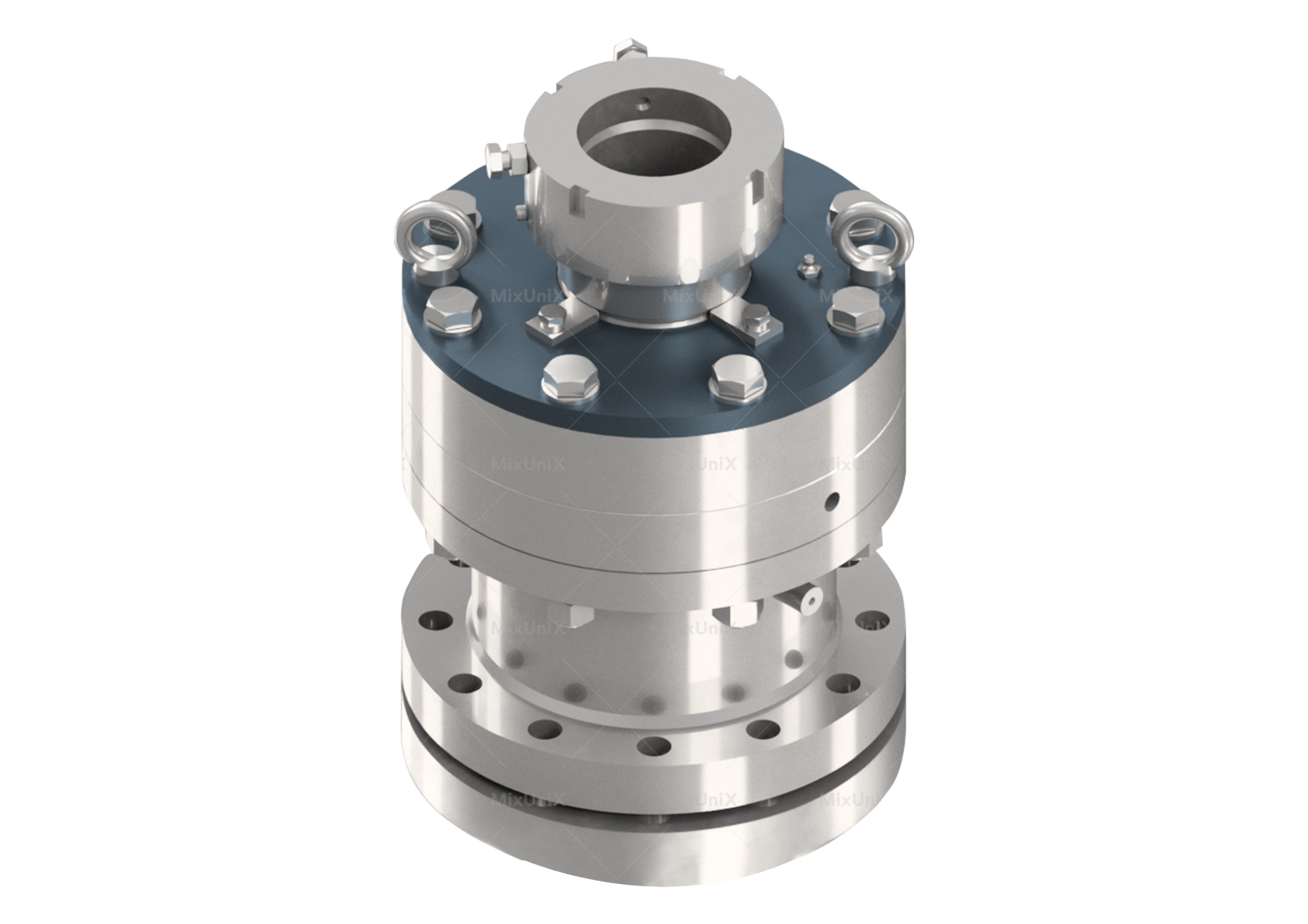

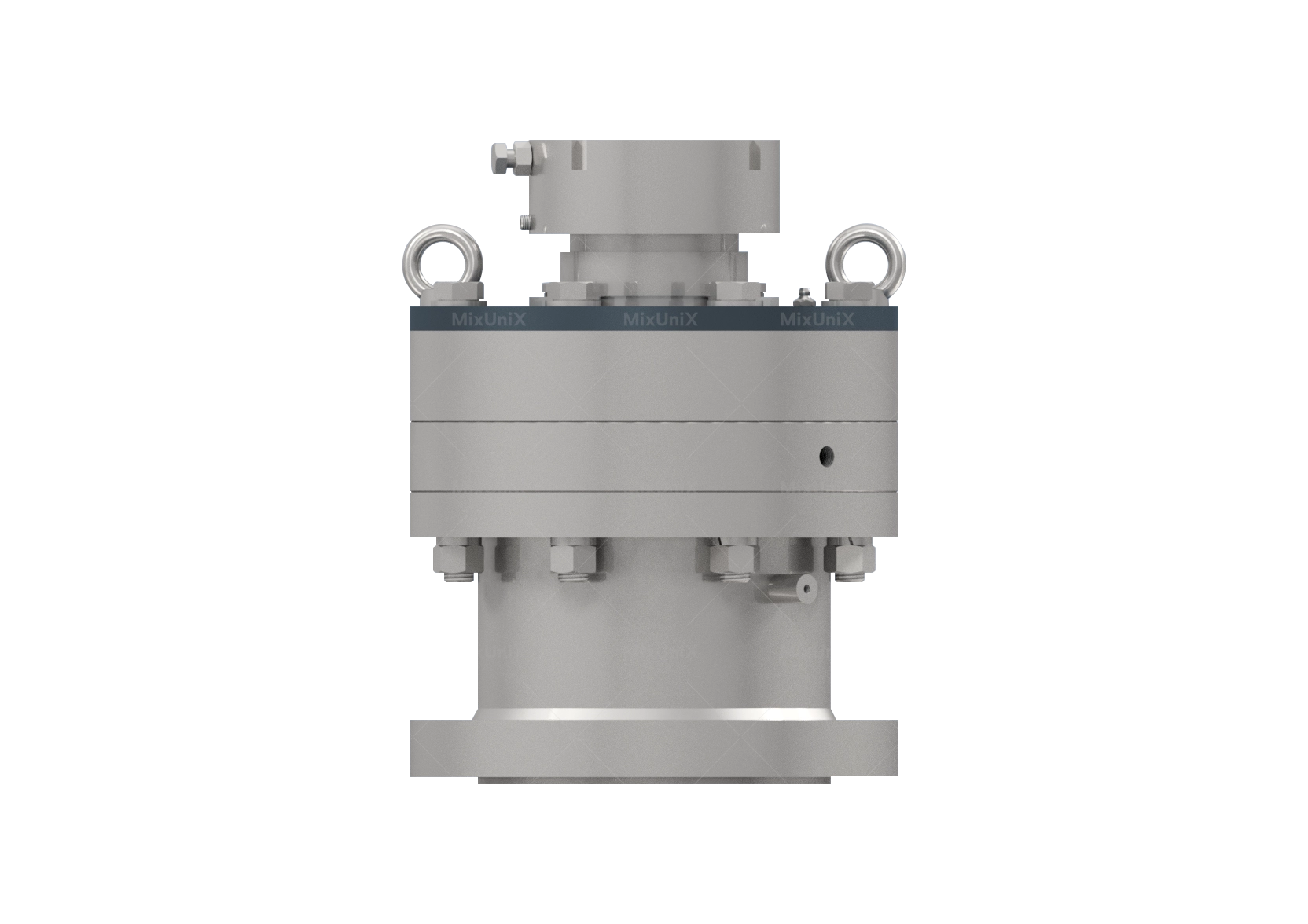

Double Face Mechanical Seal
Temperature
-40℃ to 350℃
Pressure
-0.1 to 4 MPa
Tip Speed
0~3 m/s
Design Features

The operating principle of a double mechanical seal is essentially the same as that of a single mechanical seal. Sealing is achieved by a pair of faces perpendicular to the rotating shaft axis, which remain in contact and slide relative to each other under fluid pressure, spring force from the compensation mechanism, and the action of auxiliary seals to prevent fluid leakage.

Different configurations are available according to operating conditions:
  • Top-entry / side-entry / bottom-entry mixers
  • Mildly corrosive media / highly corrosive media
  • Sanitary / non-sanitary
  • Axial double mechanical seal / radial double mechanical seal
