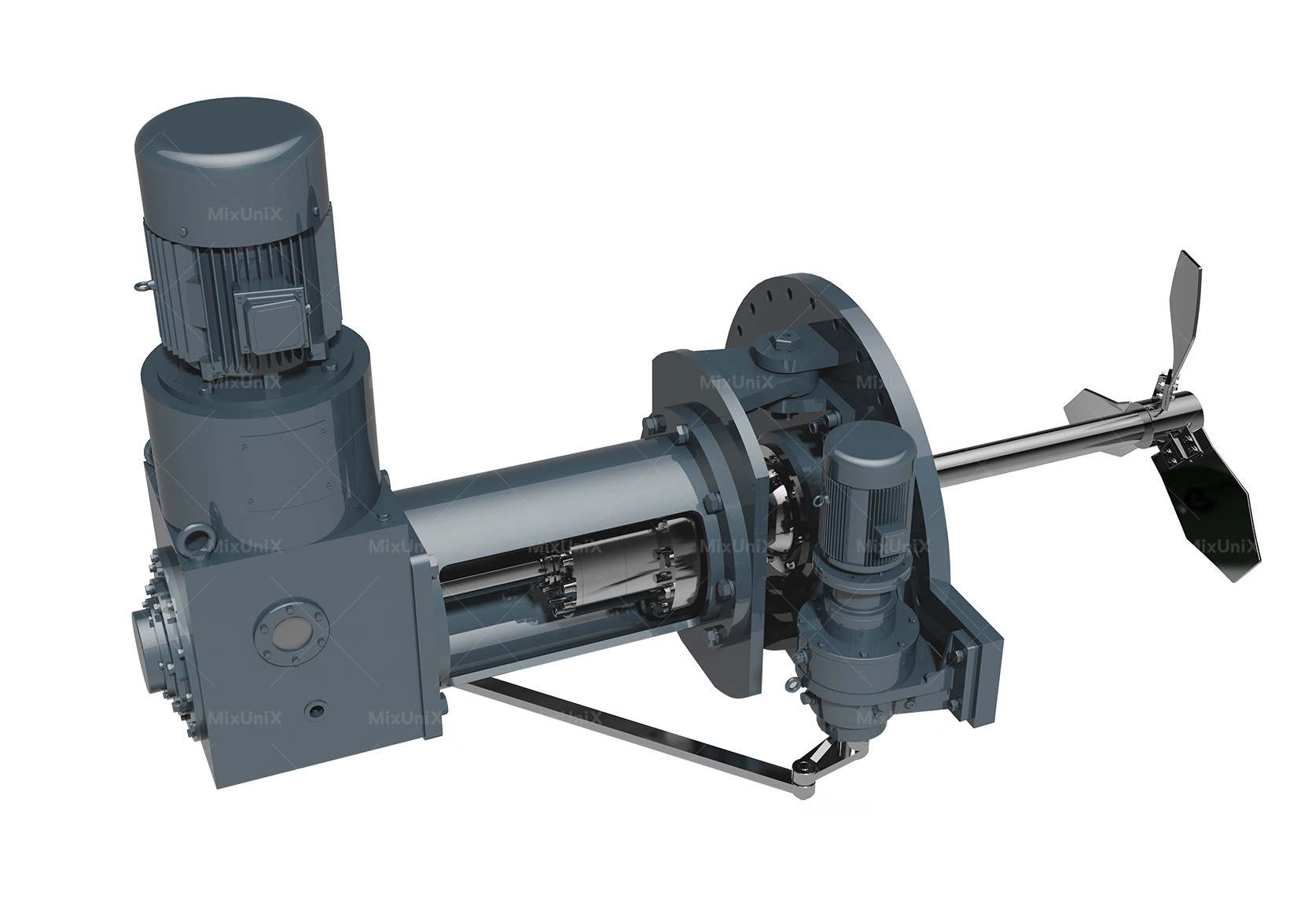

CKJ Series Swivel
Angles Side-Entry Mixer
Power
Up to 55 kW(75HP)
Speed
190〜350 rpm
Torque
2,500 N·m
Design Features

The CKJ Series oscillating side-entry mixer is developed from the CPT and CFJ fixed-angle mixer platforms by adding an oscillating mechanism and dedicated sealing design. It is particularly suitable for very large vessels such as crude-oil storage tanks and applications requiring enhanced mixing performance.

  • Precision-engineered gearing provides a compact structure, higher strength, and longer service life.
  • Heavy-duty bearings are designed for a service life of more than 100,000 hours.
  • Helps reduce power consumption, shorten mixing time, and improve mixing performance.
  • Equipped with a dedicated 261 mechanical seal and special shut-off device, allowing seal maintenance or replacement while the vessel remains filled.
Product Application
CKJ系列搅拌器可用于大多数中小型专业或常规项目使用环境
