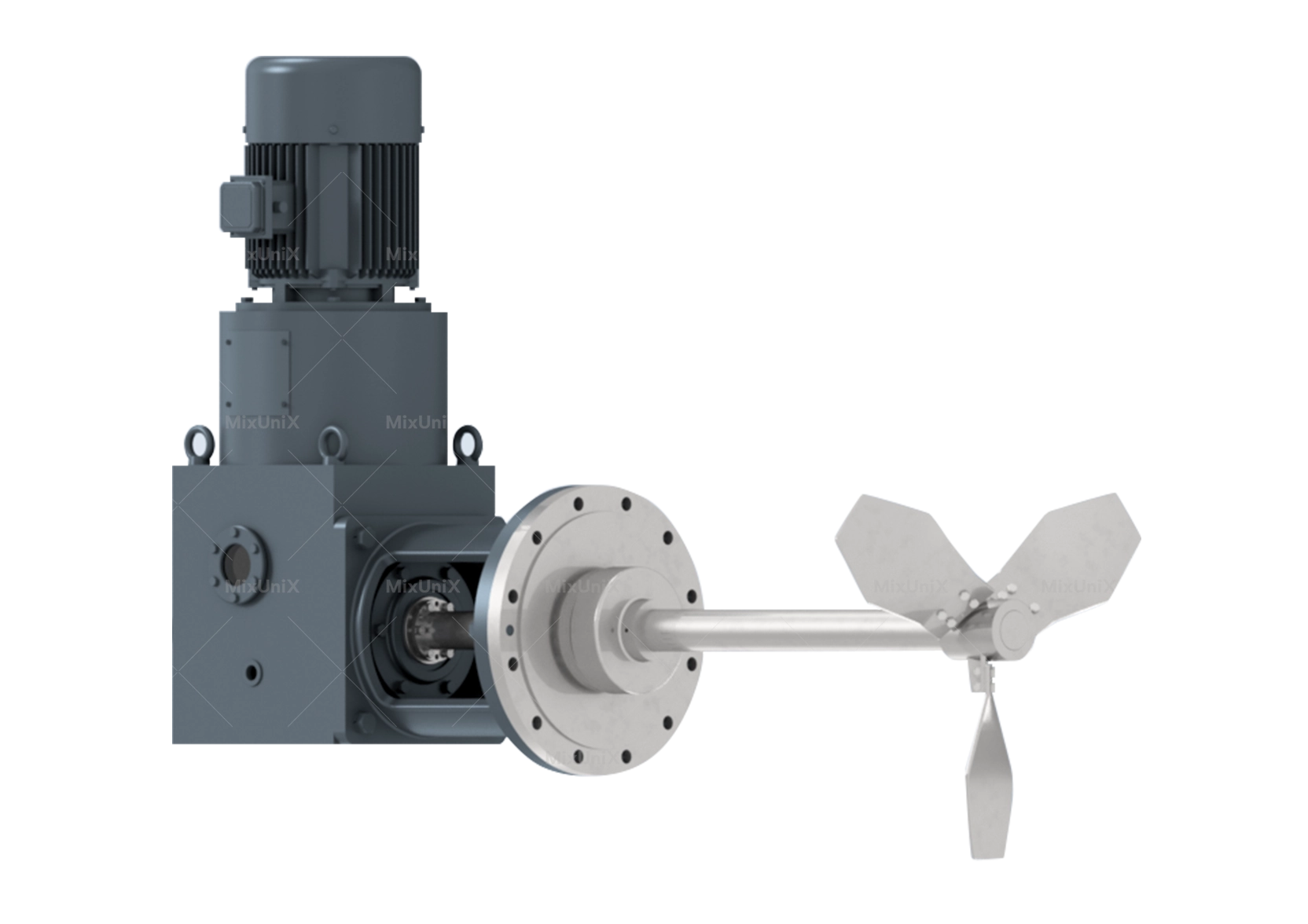

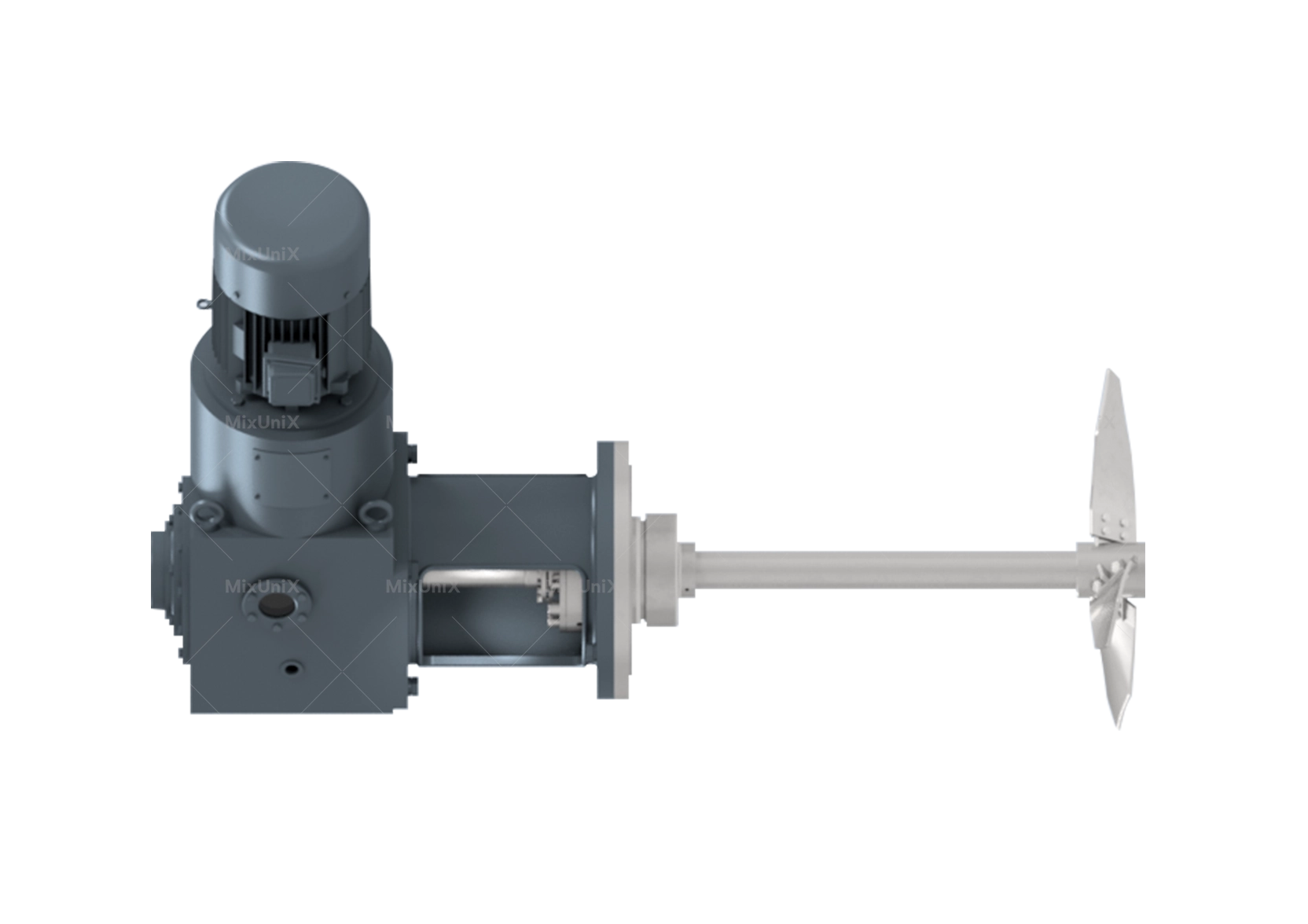

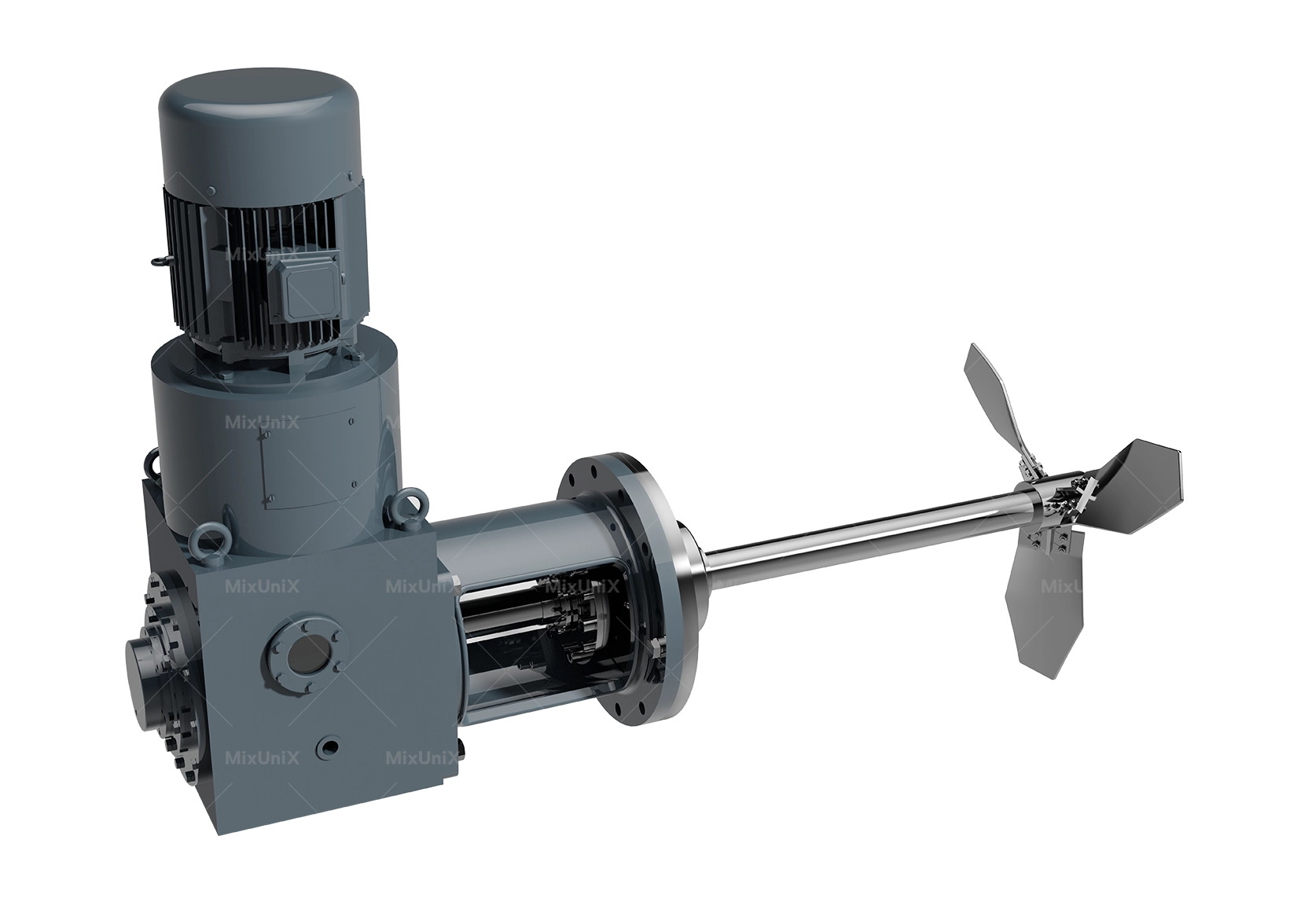

CFJ Series Fixed-Angle Gear Drive Side-Entry Mixer
Power
Up to 55 kW (75 HP)
Speed
170~350 rpm
Torque
2,500 N·m
Design Features

The CFJ Series side-entry mixer uses a spiral-bevel gear set for power transmission. It features a specially designed mechanical seal and shut-off device and is widely used in flue-gas desulfurization (FGD) absorption towers, oil storage tanks, and other process applications.

  • Simple structure and high transmission efficiency.
  • Heavy-duty bearings are designed for a service life of more than 100,000 hours.
  • One-piece shaft design helps ensure accuracy and stable operation.
  • Equipped with a dedicated 261 mechanical seal and special shut-off device, allowing seal maintenance or replacement while the vessel remains filled.
Product Application
CFJ系列搅拌机可用于许多过程,从简单的存储搅拌到复杂的气固液混合
